MALOSSI WING CLUTCH BELL INTERNAL DIAM.107MM AND WEIGHT 539 GRAMS FOR PIAGGIO ENGINES VESPA SPRINT 3V IGET 50 IE 4T EURO 5 2021+

WING CLUTCH BELL INTERNAL DIAM.107MM AND WEIGHT 539 GRAMS FOR PIAGGIO ENGINES

Code :  7714147

MHR WING CLUTCH BELL – MADE IN ITALY

NEW

Wing Clutch Bell – Forged Steel Alloy

for Automatic Scooters CVT

The clutch bell has been developed and manufactured in our Calderara di Reno engineering plant using proprietary processes.

Machined from a single steel alloy-forging, surface hardened and tempered, no welds, these new clutch bells feature an innovative manufacturing process and attention to the finest details guarantee a highest quality product.

Designed and developed by our engineering department and handed over directly to our manufacturing, where our latest generation of Numerically Controlled lathes convert the 3-D solid models into final products.

The clutch bell machining process starts with a forging and exits the NC lathe completely finished, ready for heat-treating and wear resistant/anti-corrosion surface treatment, with no human intervention.

Technical Specifications

• Forged clutch bell, without welds, made of 39NiCrMo5 steel, nitrogen surface hardened with an antioxidant surface treatment.
• Machined finned reinforcement corona enhances heat dissipation, protecting the clutch's friction material, tested to over 20,000 RPM.
• Radial scraping holes added to the contact surface, sized and positioned to continually clean the clutch's friction material.
• Original system concept with openings designed to create dynamic ventilation and offering the possibility to adjust the internal clutch settings.
• Highest levels of finishes and extreme close tolerances maintained.

Working Surface Tolerances

• Surface finish: Ra 0.5 µm
• Circular Runout: 0.05 mm
• Circularity: 0.08 mm
• Balancing: 0.5 g

Made in Italy "Malossi"

High Tech response to low quality counterfeits

Malossi does not stop after the design stage, asking others to manufacture what its engineers developed: Malossi follows thru by manufacturing in-house, researching the best materials, and following step for step the development of its products that bear the Malossi logo.

This is what makes the difference!

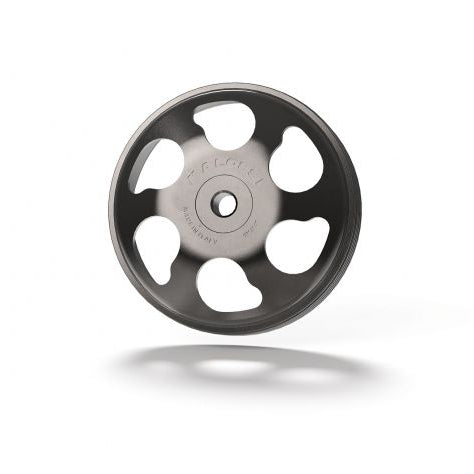

NB: The picture is only indicative
